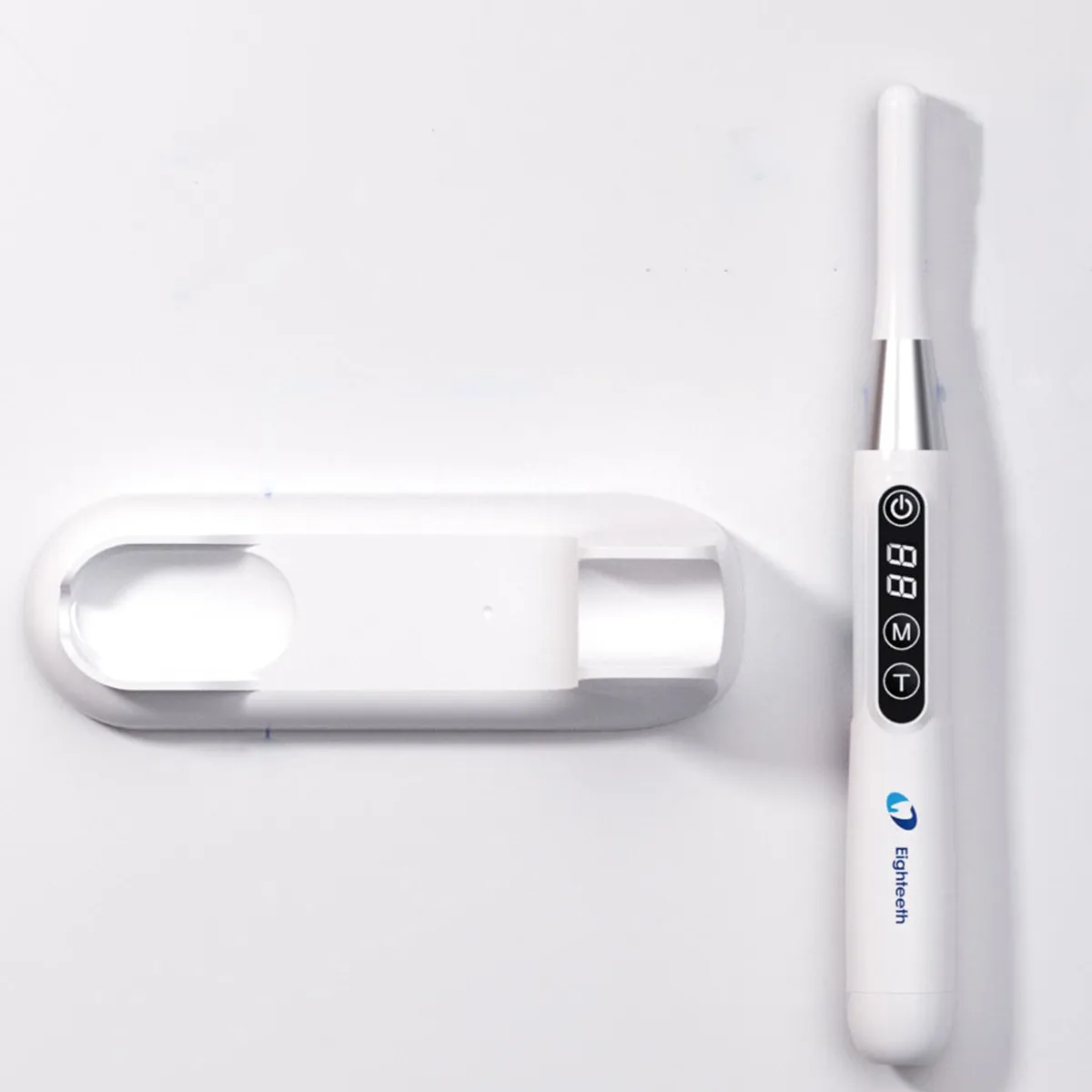

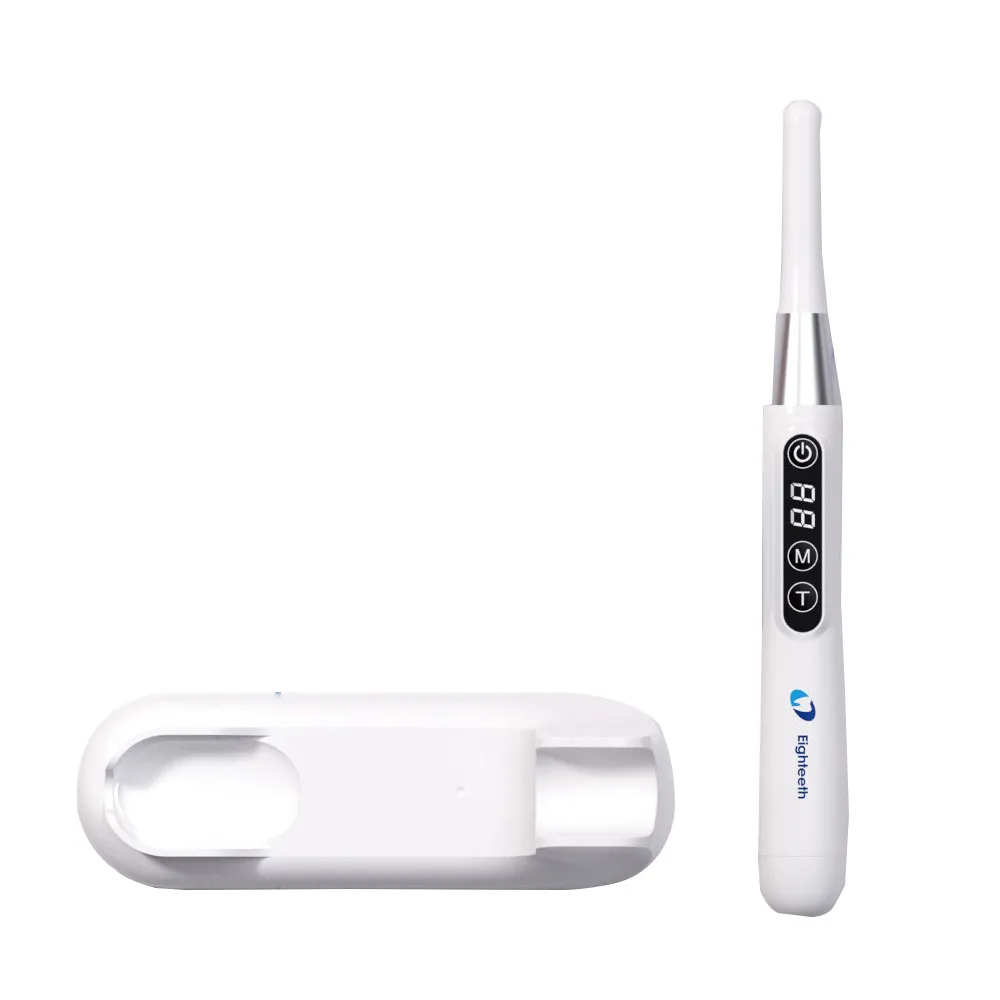

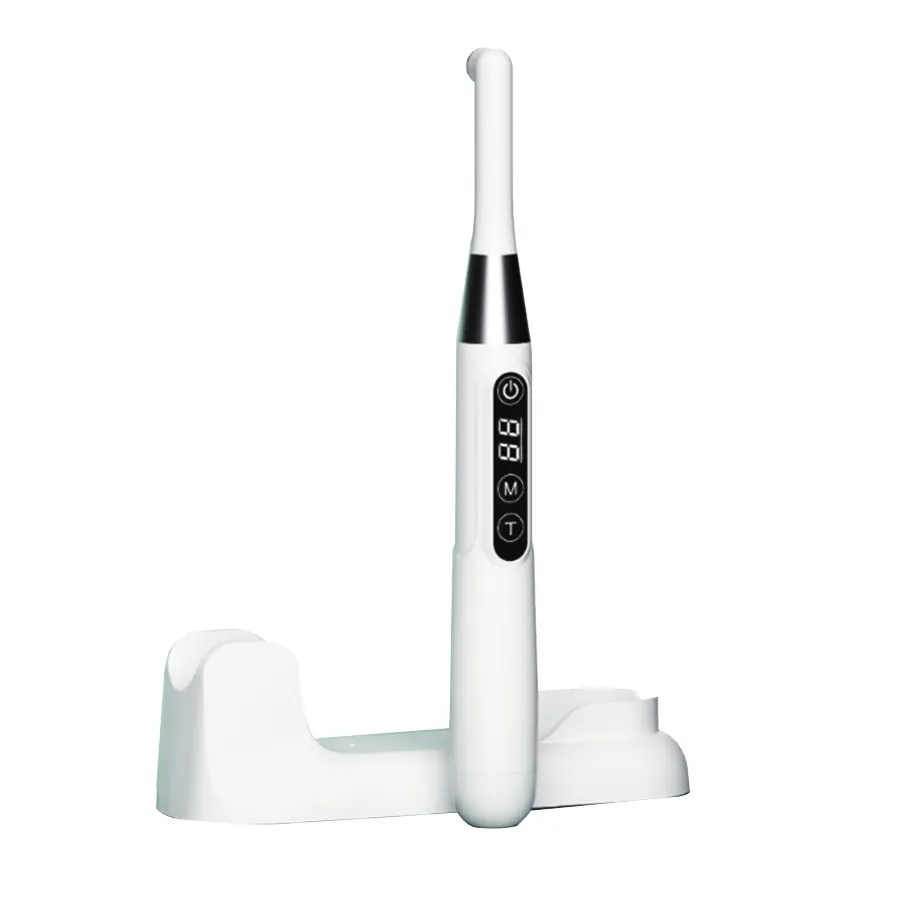

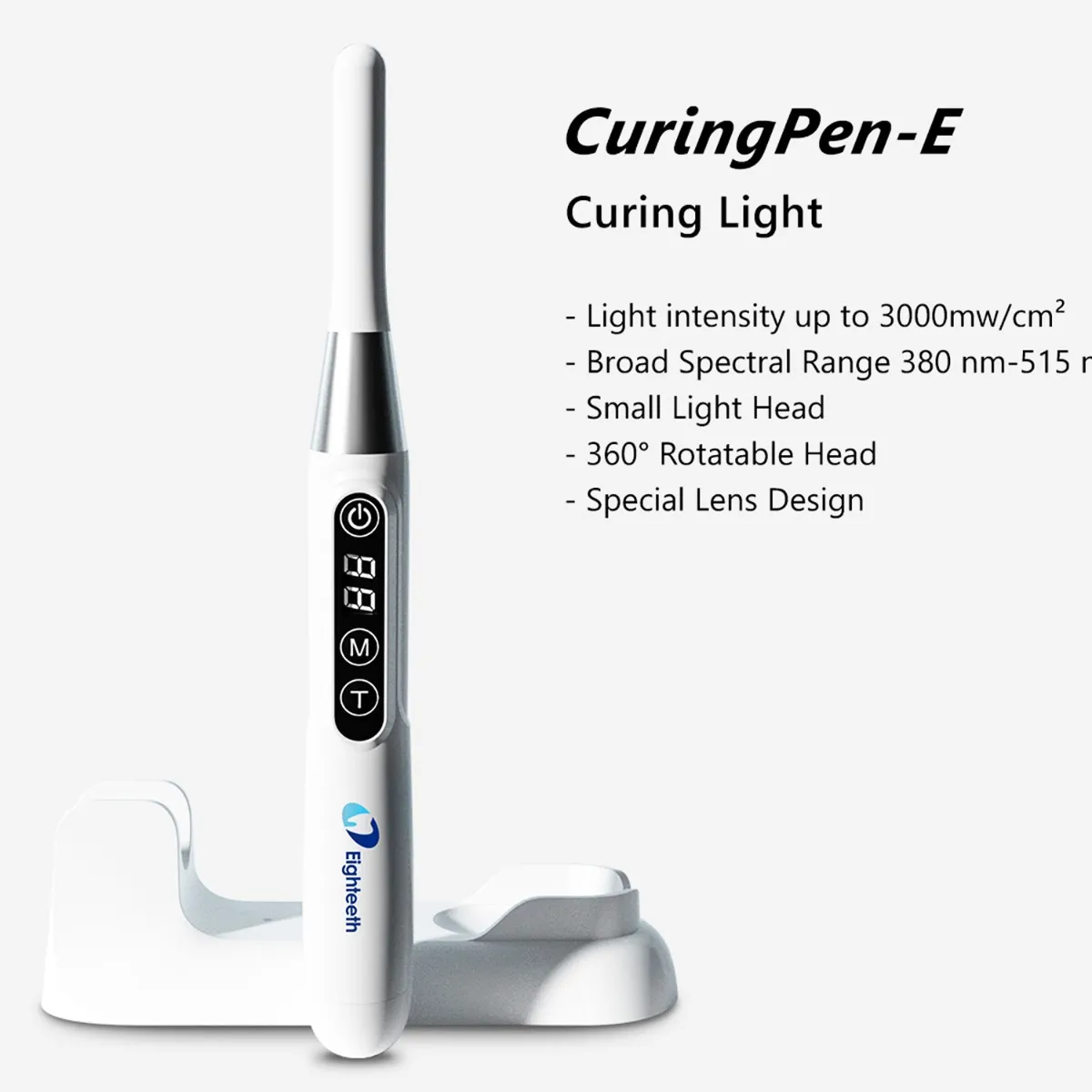

Eighteeth Medical Curing Pen E

Description

Eighteeth Medical Curing Pen E is a handheld device used in dentistry for the curing or hardening of dental materials such as composites, sealants, and bonding agents. These pens emit a high-intensity light in the blue wavelength range that activates a photochemical reaction in the dental material, causing it to harden and bond to the tooth structure.

Key Specifications

• Dimension– 19 x 16.5 x 7.5 cm
• Weight– 120 g

• Lens Size– 8 mm

• Power Supply– >1200 times 3000 mw/cm2, 3 Sec

• Maximum Light Intensity– 3000 mw/cm2

• Spectral Range– 380-515 nm

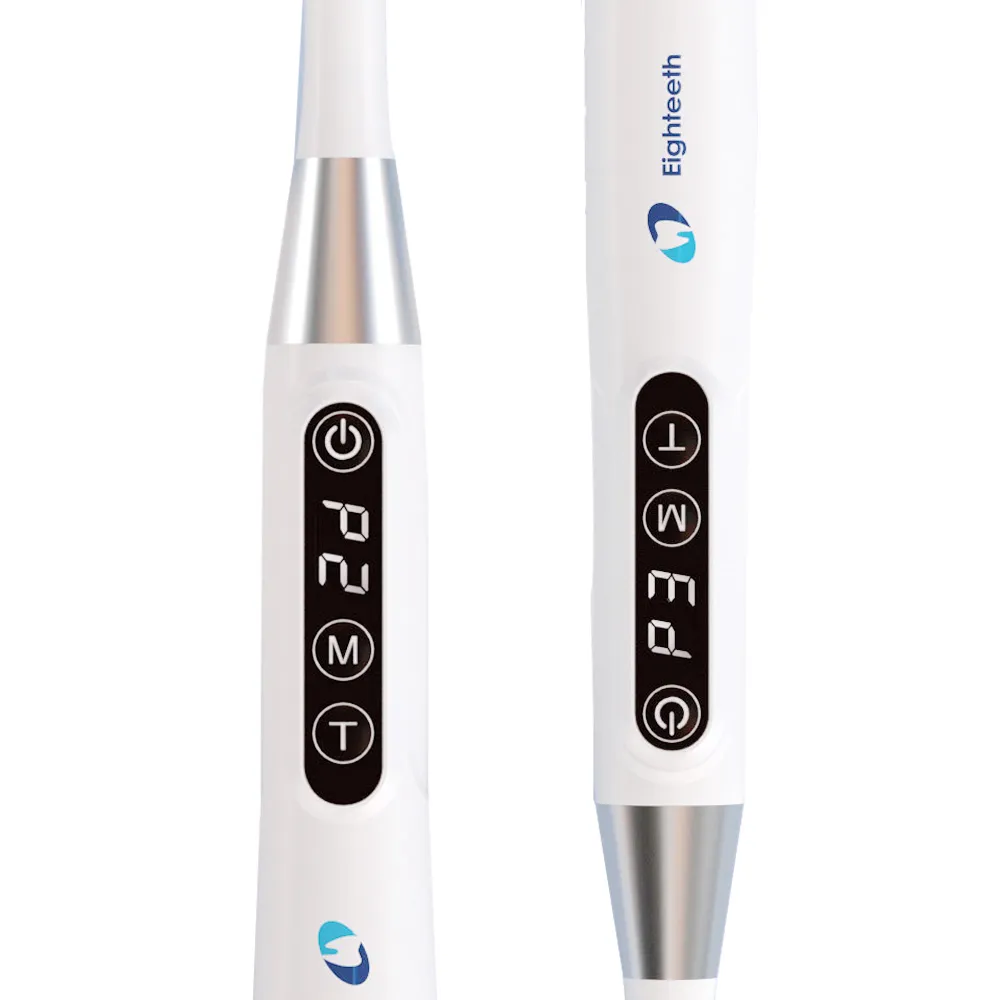

Working Mode

• Normal Mode P1

• Light intensity – 1200mw/cm²
• Time Setting – 5s,10s,15s,20s,25s,30s,35s,40s

• High Mode P2

• Light intensity – 2000mw/cm²
• Time Setting – 1s,3s,5s,10s

• Ultra Mode P3

• Light intensity – 3000mw/cm²
• Time Setting – 1s,3s,5s

• Pulse Mode P4

• Light intensity – 1200mw/cm²
• Time Setting – 5s,10s,15s,20s,

• Ramp Mode P4

• Light intensity – 1200mw/cm²
• Time Setting – 5s,10s,15s,20s,
