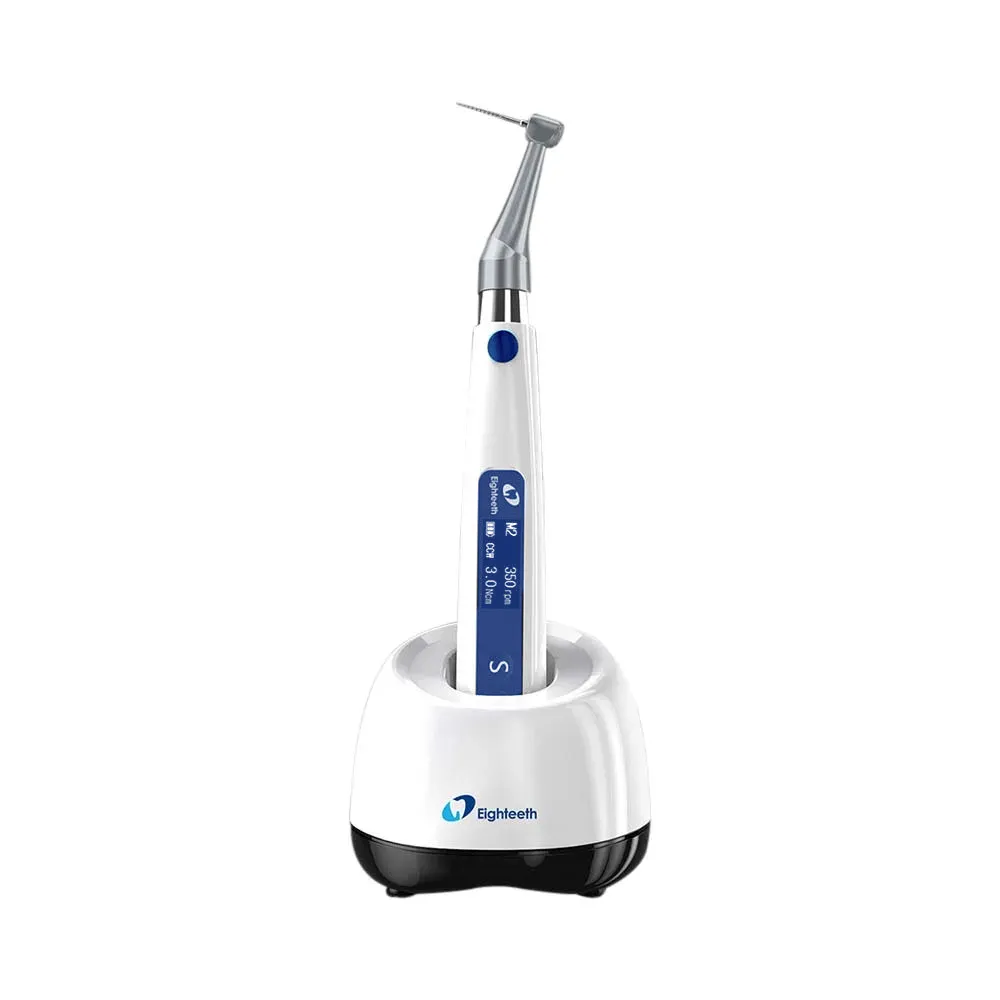

Eighteeth Medical E-connect S+ Endomotor

Original price was: $ 1161.88.Current price is: $ 893.75.

Brushless Endomotor with built-in apex locator and smart feature with long battery life

QuantityPrice
2 - 5 $ 884.81
6 - 10 $ 875.88
11 - 20 $ 858.00
21 - 50 $ 849.06
51 + $ 831.19
Bulk Inquiry
  ... people are viewing this right now

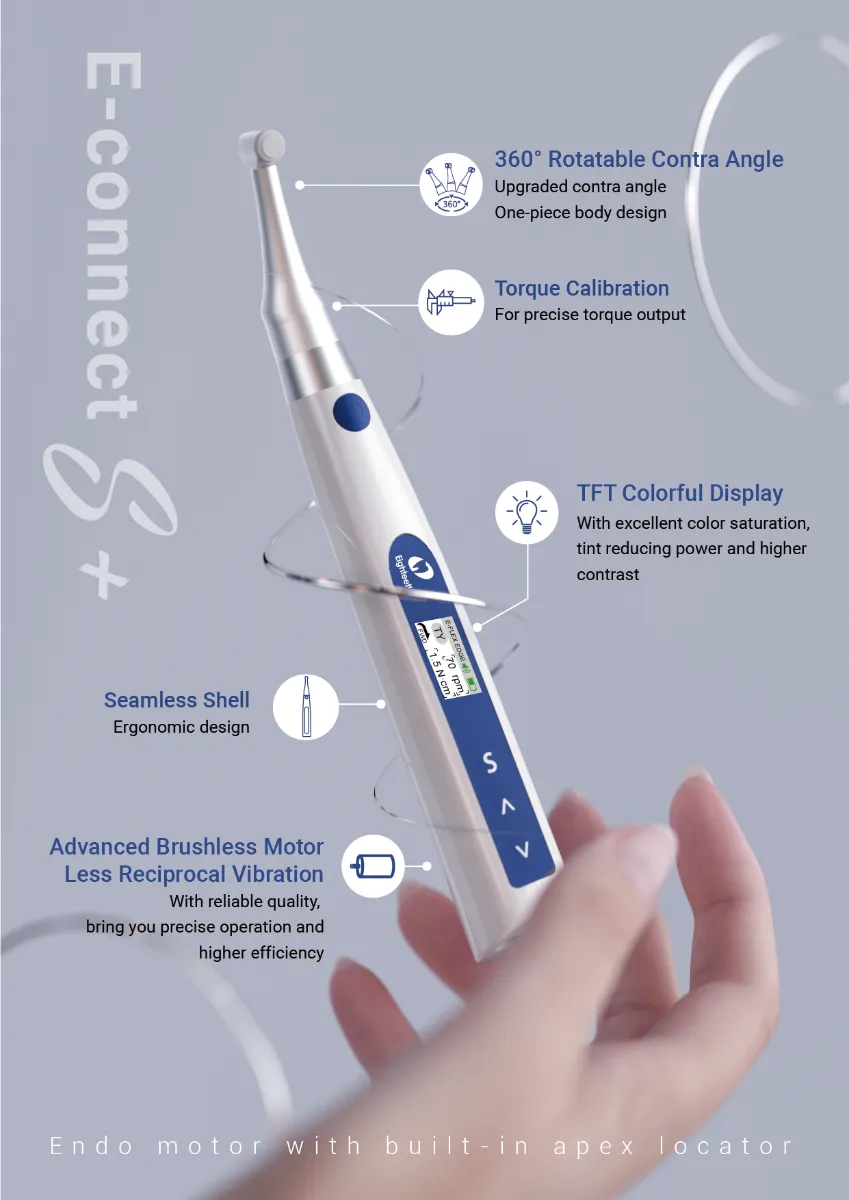

Features

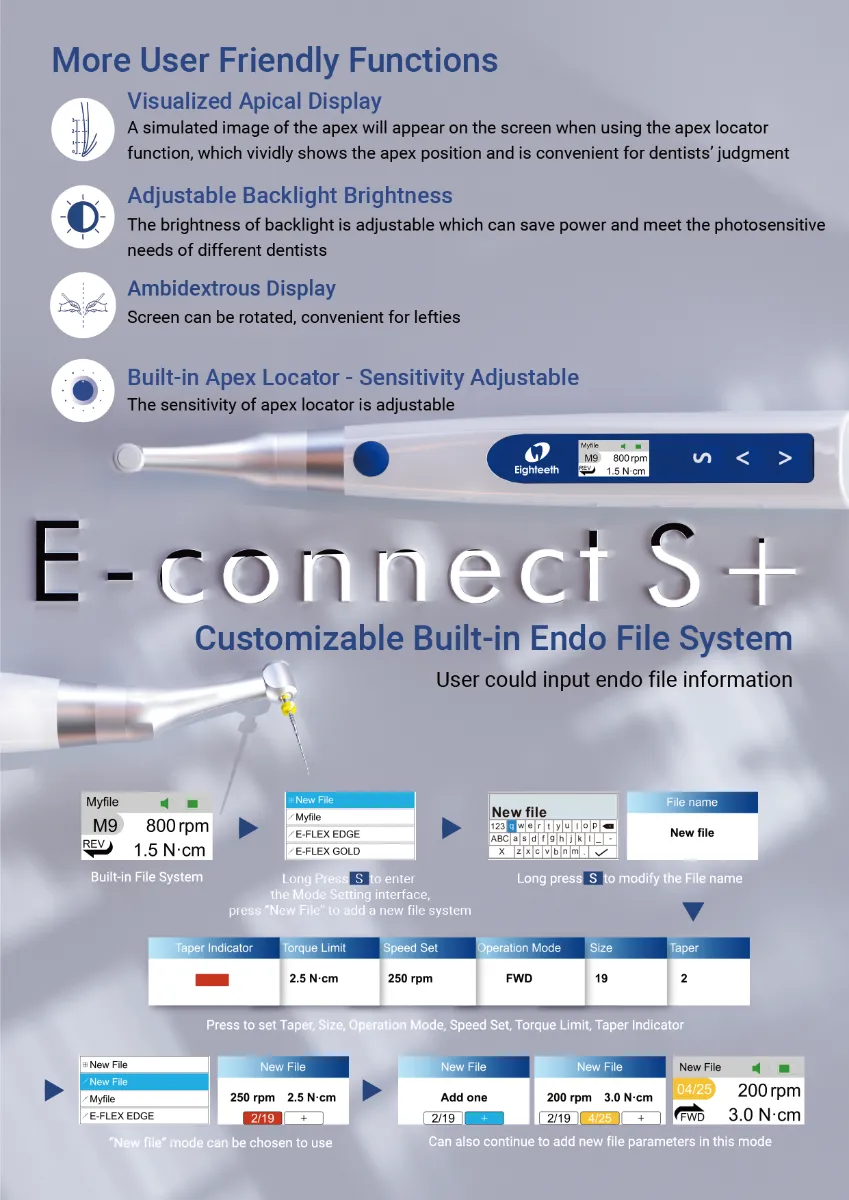

Visualized Apical Display

  • A simulated image of the apex will appear on the screen when using the apex locator function, which vividly shows the apex position and is convenient for dentists’ judgment

Adjustable Backlight Brightness

  • The brightness of backlight is adjustable which can save power and meet the photosensitive needs of different dentists

Ambidextrous Display

  • Screen can be rotated, convenient for lefties

Built-in Apex Locator – Sensitivity Adjustable

  • The sensitivity of apex locator is adjustable

360° Rotatable Contra Angle

  • Upgraded contra angle One-piece body design
  • Torque Calibration For precise torque output

TFT Colorful Display

  • With excellent color saturation, tint reducing power and higher contrast

Advanced Brushless Motor Less Reciprocal Vibration

  • With reliable quality. bring you precise operation and higher efficiency

Description

The latest model of E-connect S+ endomotor has rotational speed ranging from 50rpm – 1500rpm. It has an efficient and reliable brushless motor. The multi-frequency technology used in the inbuilt Apex locator equips high precision and accuracy for the treatment.

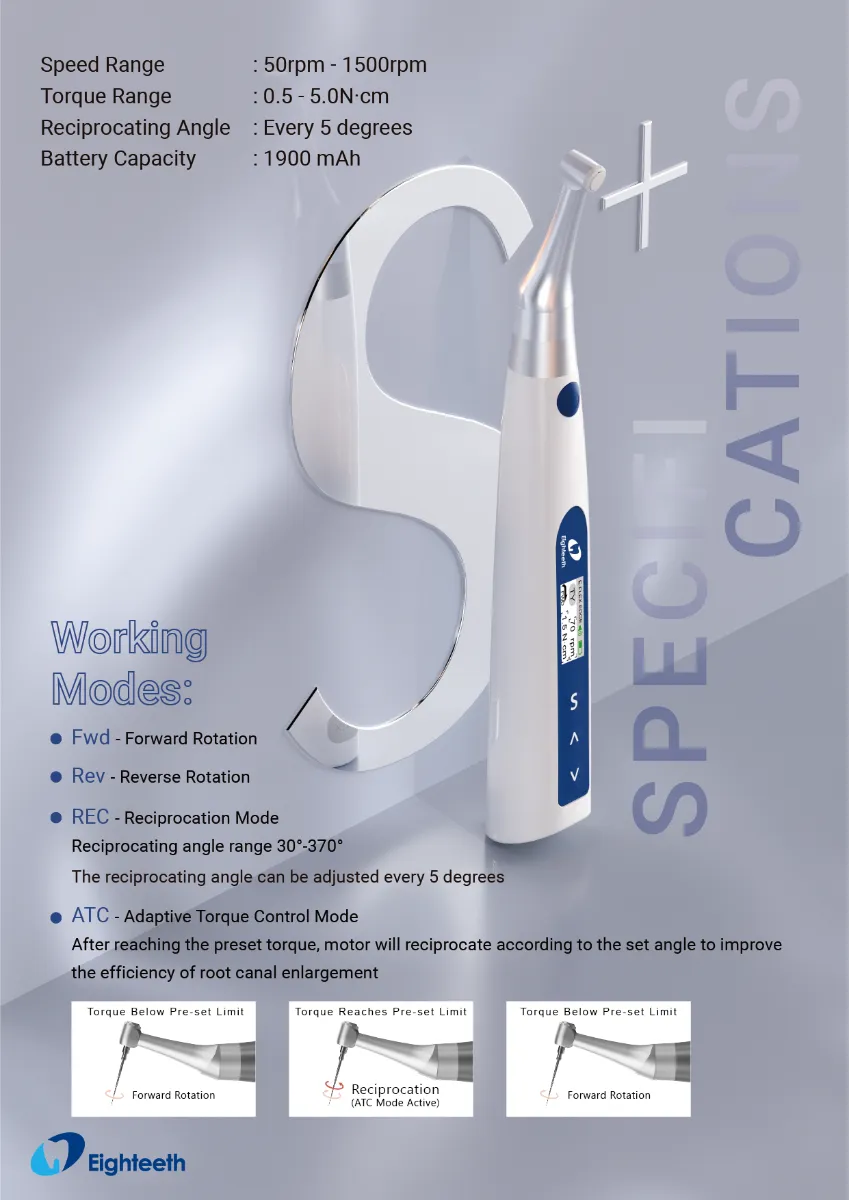

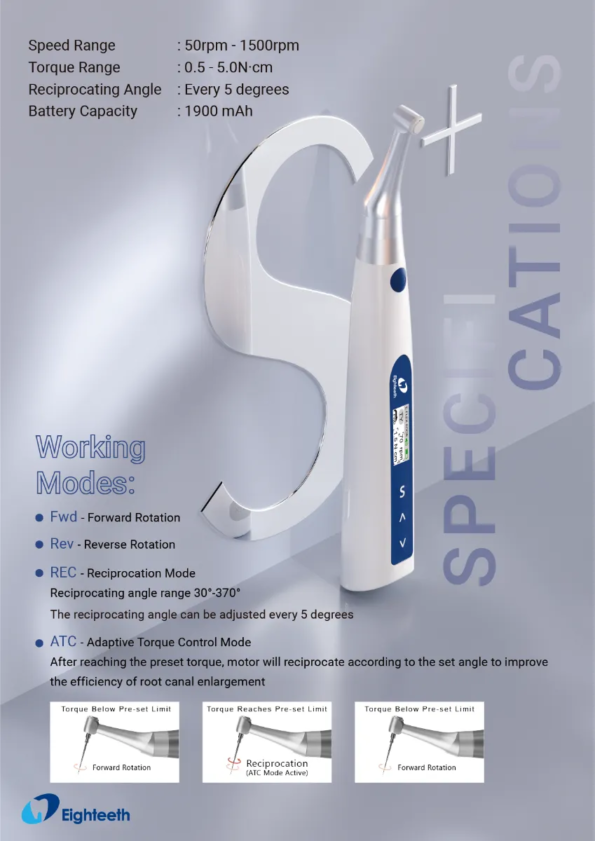

Working Modes:

FWD – Clockwise Continuous Rotation

REV – Anti-clockwise Continuous Rotation

REC – Reciprocation Mode

  • Reciprocating angle range 30°-370°
  • The reciprocating angle can be adjusted every 5 degrees

ATC – Adaptive Torque Control

  • ATC manages the file stress in a smart way.
  • When torque limit is reached- instead of going into reverse mode, motor reciprocates till the stress is reduced.
  • Once back to below pre-set torque level, file will again rotate in continuous rotation.

Integrated Mode Features :

  • Auto Start & Stop: Motor starts working when the file enters the root canal, and stops when withdrawn
  • Apical Slow Down: To preserve the cemento-dentinal junction and avoid file separation, speed of motor slows down when file is in apical region
  • Apical Reverse: When the file reaches pre-set apical reverse point, user can define whether the file starts moving in reverse direction. Apical reverse point is adjustable

ADVANTAGES :

  • Real Brushless Motor
  • 10 programs with adjustable speed, torque, etc
  • Cordless Endomotor
  • Miniature Head: Provides excellent visibility while working
  • Lithium Battery
  • Built-in Apex Locator

Key Specifications

  • Speed Rang : 50rpm – 1500rpm
  • Torque Range : 0.5 – 5.0N cm
  • Reciprocating Angle : Every 5 degree
  • Battery Capacity : 1900 mAh

Packaging

  • 1 x Handpiece
  • 1 x Contra-angle
  • 1 x Charging base
  • 1 x Adapter
  • 1 x Measuring wire
  • 1 x Insulating sleeve
  • 2 x Lip hooks
  • 2 x File clips
  • 1 x Instruction manual

Direction to Use

Power On/Off:

  • Press the power button to turn on the endomotor. To power off, press and hold the power button until the device shuts down.

Selecting Mode:

  • Use the mode selector to choose the desired working mode: FWD (Clockwise Continuous Rotation), REV (Anti-clockwise Continuous Rotation), REC (Reciprocation Mode), or other available modes.

Setting Speed and Torque:

  • Adjust the speed and torque settings based on the specific requirements of the dental procedure. Use the controls provided on the device interface for precise customization.

Reciprocating Mode:

  • If using the REC mode, set the reciprocating angle according to preferences. The angle can be adjusted in increments of 5 degrees for optimal flexibility.

Built-in Apex Locator:

  • Activate the built-in apex locator function. The visualized apex display will show a simulated image on the screen, aiding in the precise determination of the apex position.

Adjustable Sensitivity:

  • Fine-tune the sensitivity of the apex locator to enhance accuracy. This is particularly useful for different tooth structures and varying clinical situations.

Contra Angle Rotation:

  • Utilize the 360° rotatable contra angle for flexibility in accessing different areas. The one-piece body design enhances durability.

Torque Calibration:

  • Calibrate the torque settings for precise torque output. This ensures optimal control during procedures, preventing excessive stress on files.

TFT Colorful Display:

  • Take advantage of the TFT colorful display with adjustable backlight brightness. Rotate the screen if needed for ambidextrous use, catering to both left-handed and right-handed dentists.

Power Management:

  • Monitor the battery level regularly. Charge the device as needed to maintain a sufficient power supply. Adjust the backlight brightness to save power when necessary.

Apical Slow Down and Reverse:

  • If applicable, consider enabling features like apical slow down and reverse. These features enhance safety and precision during procedures.

Power Off After Use:

  • Once the procedure is complete, power off the endomotor. Clean and sterilize the components according to the manufacturer’s guidelines.

1. We offer Worldwide Shipping by Courier via Air or Sea mode.
2. Product will be dispatched within 5-7 working days.
3. Delivery will take a maximum of 7-15 days, based on the shipping option you choose.
4. Kindly check customs restrictions and rules in your country for specific products, mostly 99% shipments are cleared and delivered smoothly.
5. For Bulk inquiries or customized manufacturing please contact us.
