NSK SG20 Implant Contrangle Handpiece

Description

The NSK SG20 Implant Contrangle Non-LED Handpiece is a high-quality surgical instrument designed for precision and durability. It features a gear ratio of 20:1, providing a reliable 20 times reduction in rotational speed, which is ideal for various implant and surgical procedures. The reduction in speed ensures the necessary control and accuracy required during delicate operations. The handpiece is equipped with a water spray system, both externally and internally, to provide effective cooling during use. The Kirschner and Meyer cooling system. Stainless steel, the body of the NSK SG20 Implant Contrangle Handpiece exhibits excellent corrosion resistance and robustness, making it suitable for frequent use in busy clinical settings.When the handpiece is in use, the cutting edges rotate at a reduced speed due to the gear ratio of 20:1. This controlled rotation speed allows for precise control over the cutting process, minimizing the risk of accidental damage and ensuring accurate shaping and preparation of the implant site.

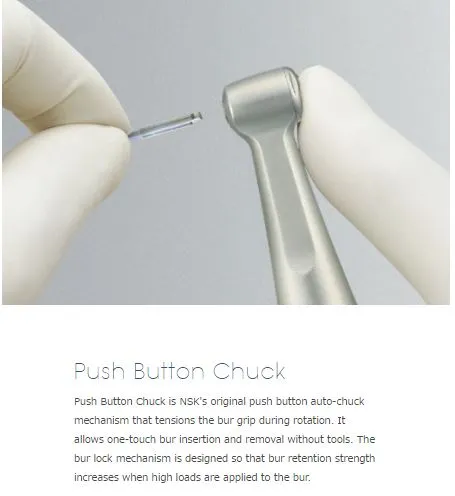

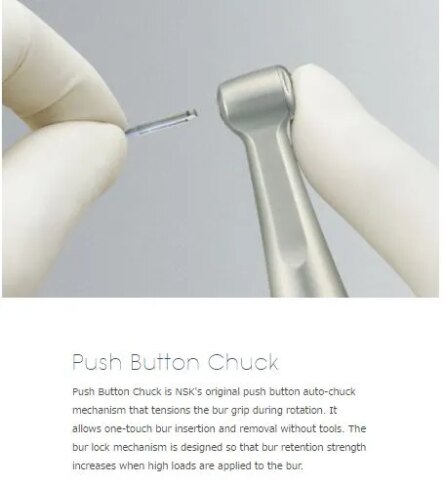

With a maximum speed of 2,000 min-1 and a maximum torque of 80 Ncm, this handpiece delivers sufficient power and efficiency to handle various surgical tasks effectively. The NSK SG20 features the innovative Push Button Chuck, an auto-chuck mechanism that allows for easy and swift bur insertion and removal without the need for any tools. The bur grip is tensioned during rotation, ensuring a secure and reliable hold of the bur, even under high loads, enhancing safety and efficiency during complex procedures.

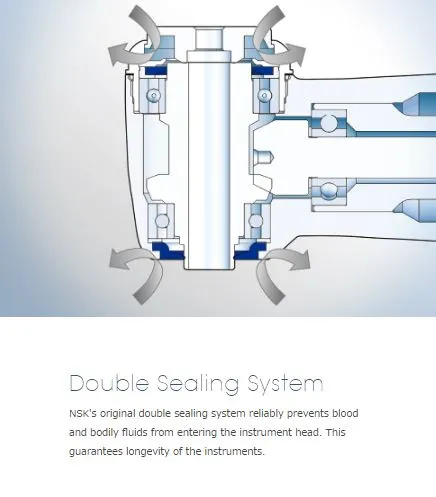

One of the key advantages of this handpiece is its Double Sealing System. This original NSK technology prevents blood and bodily fluids from entering the instrument head, ensuring the longevity and reliability of the handpiece. With this double sealing system, the NSK SG20 Implant Contrangle Handpiece is designed to withstand the challenges of medical environments, offering exceptional durability and performance.

Key Specifications

Direction to Use

• Connecting the Handpiece: Connect the handpiece to the dental unit or motor using the appropriate coupling system or attachment. Ensure a secure and stable connection.
• Inserting the Bur: Press the push-button located on the handpiece to activate the chuck mechanism. This will release the bur grip. Insert the desired bur into the chuck opening until it is fully engaged. Release the push-button to secure the bur in place. Verify that the bur is firmly held by gently pulling on it.
• Water Spray: Connect the water supply to the handpiece if it is equipped with an external water spray system. Adjust the water flow to provide adequate cooling during the procedure. The water spray helps to keep the bur and the operating area cool, reducing heat and discomfort.
• Holding the Handpiece: Grasp the handpiece firmly but comfortably, ensuring a secure grip. Position your hand in a relaxed and ergonomic manner to minimize hand fatigue during the procedure. Familiarize yourself with the handpiece’s weight and balance for better control.
• Operating the Handpiece: Activate the dental unit or motor to start the handpiece’s rotation. Control the speed and pressure applied to the handpiece based on the specific procedure being performed. Follow standard dental techniques and guidelines for optimal results.
