Nsk Surgic Pro+ – Optic With TI Max X DSG20L Handpiece
$ 3750.00 Original price was: $ 3750.00.$ 3250.00Current price is: $ 3250.00.
Implant motor with LED micromotor and 20:1 reduction optic handpiece
Title | Quantity | Price |
---|---|---|
Bulk/tiered discount | 2 - 5 | 1% $ 3217.50 |
Bulk/tiered discount | 6 - 10 | 2% $ 3185.00 |
Bulk/tiered discount | 11 - 20 | 4% $ 3120.00 |
Bulk/tiered discount | 21 - 50 | 5% $ 3087.50 |
Bulk/tiered discount | 51 + | 7% $ 3022.50 |
Features
Description
The NSK Surgic Pro+ – Optic with Ti-Max X DSG20L Handpiece is a state-of-the-art dental surgical system designed to provide exceptional performance and reliability for oral surgery procedures and implantology. It combines advanced technology, user-friendly features, and a compact design, making it a versatile and efficient tool for dental specialists.The Surgic Pro+ offers 8 programs that can be customized to accommodate different implant systems, allowing for seamless integration into your clinical workflow.

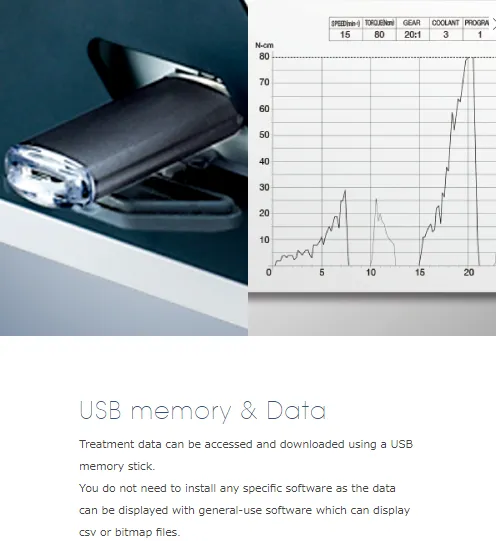

The Surgic Pro+ features a built-in data storage facility that allows for the recording of various treatment parameters. These include the date, speed, rotational direction, torque, gear ratio, and irrigation solution flow setting. The system offers a recording time of up to 100 minutes, with each recording capturing the date, time, and duration of the operation. The recorded data can be easily accessed and downloaded using a USB memory stick (not included), and can be displayed with general-use software that supports CSV or bitmap files
With a power supply of AC 120V 50/60 Hz, the Surgic Pro+ ensures stable and efficient operation. The system incorporates a high-performance pump capable of delivering a maximum output of 75 mL/min, providing reliable irrigation for a wide range of dental procedures.
The Ti-Max X DSG20L implant handpiece without the need for any tools, allowing for effortless cleaning and maintenance. The handpiece features constant torque and maximal efficiency, capable of transmitting with minimal loss and handling torque up to 80 Ncm without any issues.
The Ti-Max X DSG20L handpiece can be disassembled easily for internal cleaning, but it is designed with NSK’s unique locking mechanism to prevent accidental disassembly when attached to a motor. The handpiece also incorporates NSK’s original double sealing system, effectively preventing blood and bodily fluids from entering the instrument head, ensuring longevity and durability.
Key Specifications

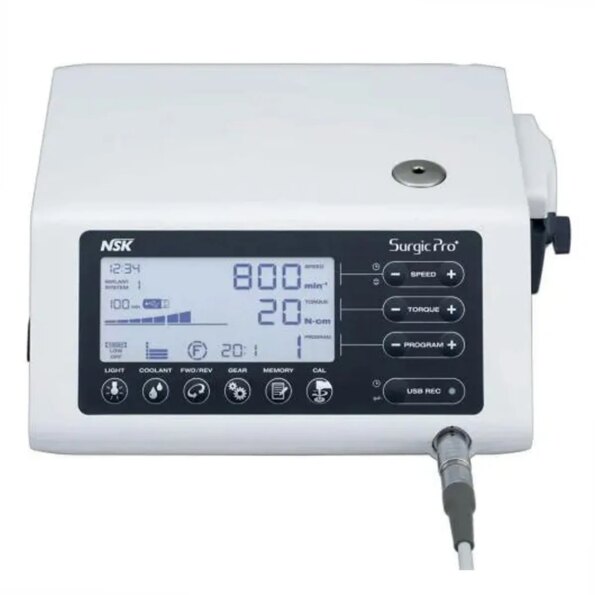

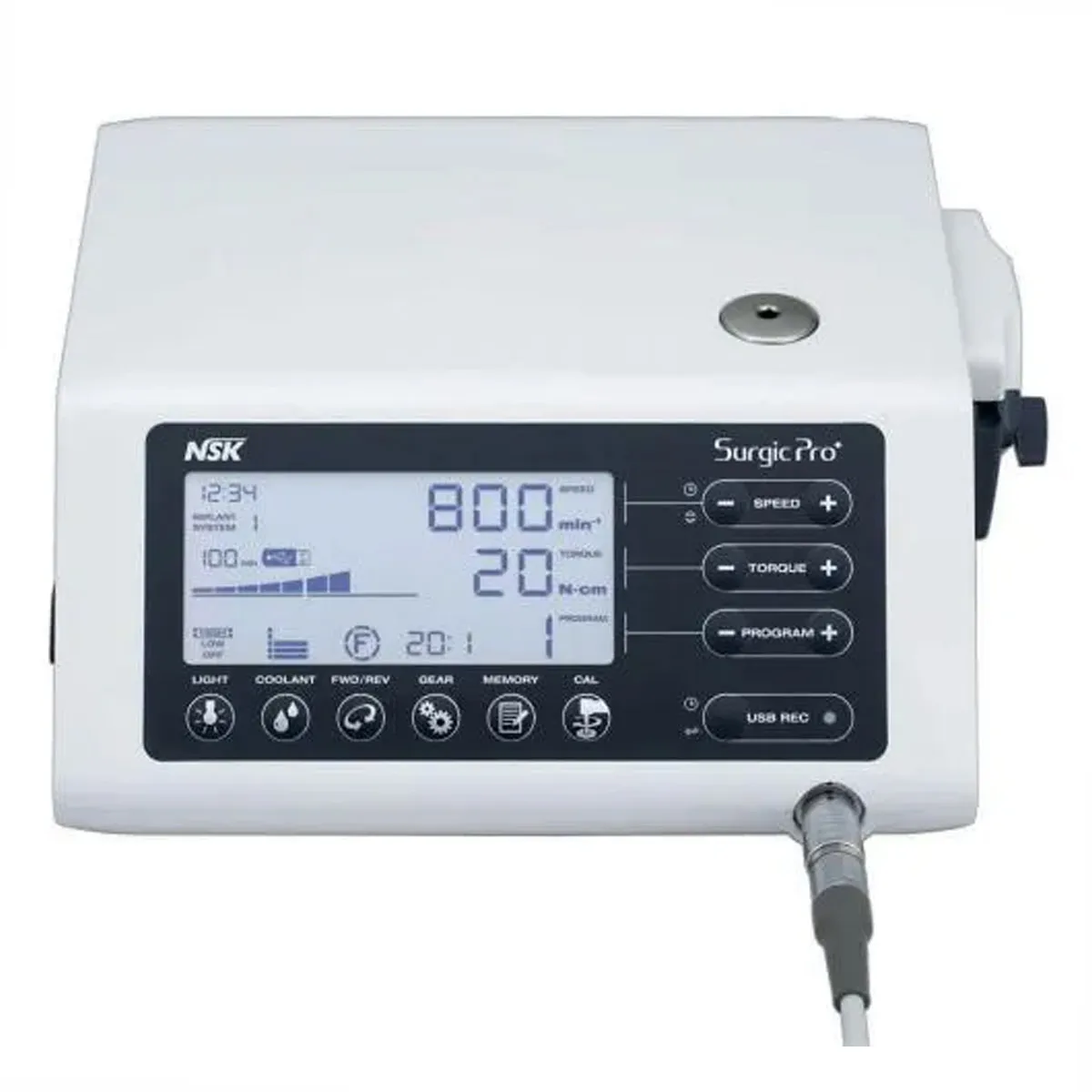

Control Unit with Advanced Handpiece Calibration
- Power Supply: AC 120V 50/60 Hz
- Max. Pump Output: 75 mL/min
- Programs: 8 Programs / Implant Systems
- Dimensions: W265 x D220 x H100 (mm)
- USB I/F: 1 port
- Built in Memory: 100 min’
Micromotor
- Torque: 5-80 Ncm
- Motor Speed: 200~40,000 min-1

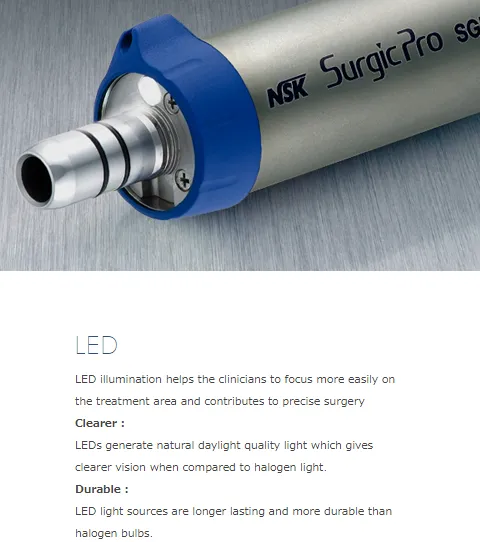

- Light Power: over 32,000 LUX (LED Micromotor)
Foot Control
- Foot Control Functions :
- Program Button, Speed Control Pedal
- Coolant Solution Flow Volume Button
- Forward / Reverse Button
Packaging
- Control Unit with data storage facility

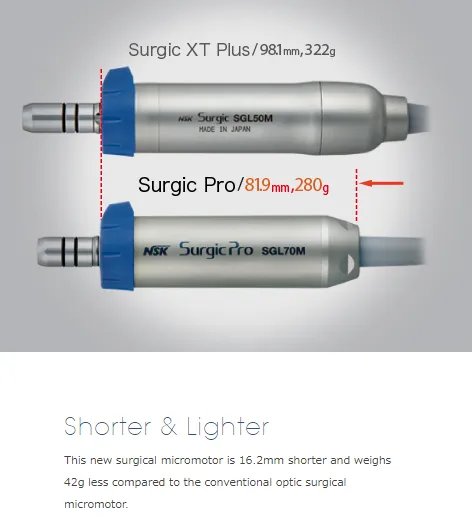

- SGL70M LED Micromotor
- FC-78 Foot Control
- TI Max-DSG20L Optic Handpiece (20:1 Reduction)
- Irrigation tube (5 pcs.)
Direction to Use
- Power Connection: Connect the Surgic Pro+ to an AC power source with a voltage of 120V and a frequency of 50/60Hz. Ensure a stable power supply to guarantee proper functioning of the system.

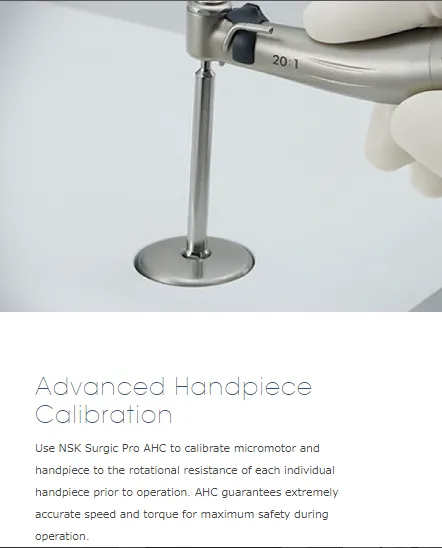

- Handpiece Calibration: Before starting any operation, use the NSK Surgic Pro Advanced Handpiece Calibration feature to calibrate the micromotor and handpiece. This calibration ensures accurate torque settings for safe and precise operation. Follow the instructions provided by NSK for the calibration process.
- Program Selection: Choose the appropriate program based on the specific implant system you are working with. The Surgic Pro+ offers 8 different programs, each tailored to different implant systems. Refer to the guidelines provided by the implant manufacturer to select the correct program.
- Handpiece Assembly: Attach the Ti-Max X DSG20L handpiece securely to the motor using the unique locking mechanism provided by NSK. Ensure a tight connection to prevent accidental disassembly during operation.
- Treatment Parameters: Set the desired treatment parameters using the control interface on the Surgic Pro+. This includes adjusting the speed, rotational direction, torque, gear ratio, and irrigation solution flow setting according to the requirements of the procedure
- Irrigation Pump: Utilize the slim, high-performance irrigation pump included with the system. Ensure easy accessibility and proper functioning of the pump during the procedure. Adjust the irrigation flow as necessary to maintain optimal treatment conditions.
- Light Intensity: The Surgic Pro+ offers three levels of light intensity (High/Low/Off) that can be adjusted by the user. Select the appropriate light intensity based on the treatment conditions to enhance visibility during the procedure.
- Recording Data: If desired, utilize the built-in data storage facility to record treatment data. This includes capturing the date, time, and duration of operation, as well as the specified treatment parameters. Insert a USB memory stick into the USB port to download and access the recorded data. Ensure compatibility with general-use software that supports CSV or bitmap files for easy data display.
- Cleaning and Maintenance: After each use, disassemble the Ti-Max X DSG20L handpiece for internal cleaning. Follow the provided instructions for easy dismantling without the need for any tools. Clean and sterilize the handpiece according to standard protocols. Ensure thorough cleaning of the instrument head to maintain longevity and prevent contamination.
1. We offer Worldwide Shipping by Courier via Air or Sea mode.
2. Product will be dispatched within 5-7 working days.
3. Delivery will take a maximum of 7-15 days, based on the shipping option you choose.
4. Kindly check customs restrictions and rules in your country for specific products, mostly 99% shipments are cleared and delivered smoothly.
5. For Bulk inquiries or customized manufacturing please contact us.
