Features
Description

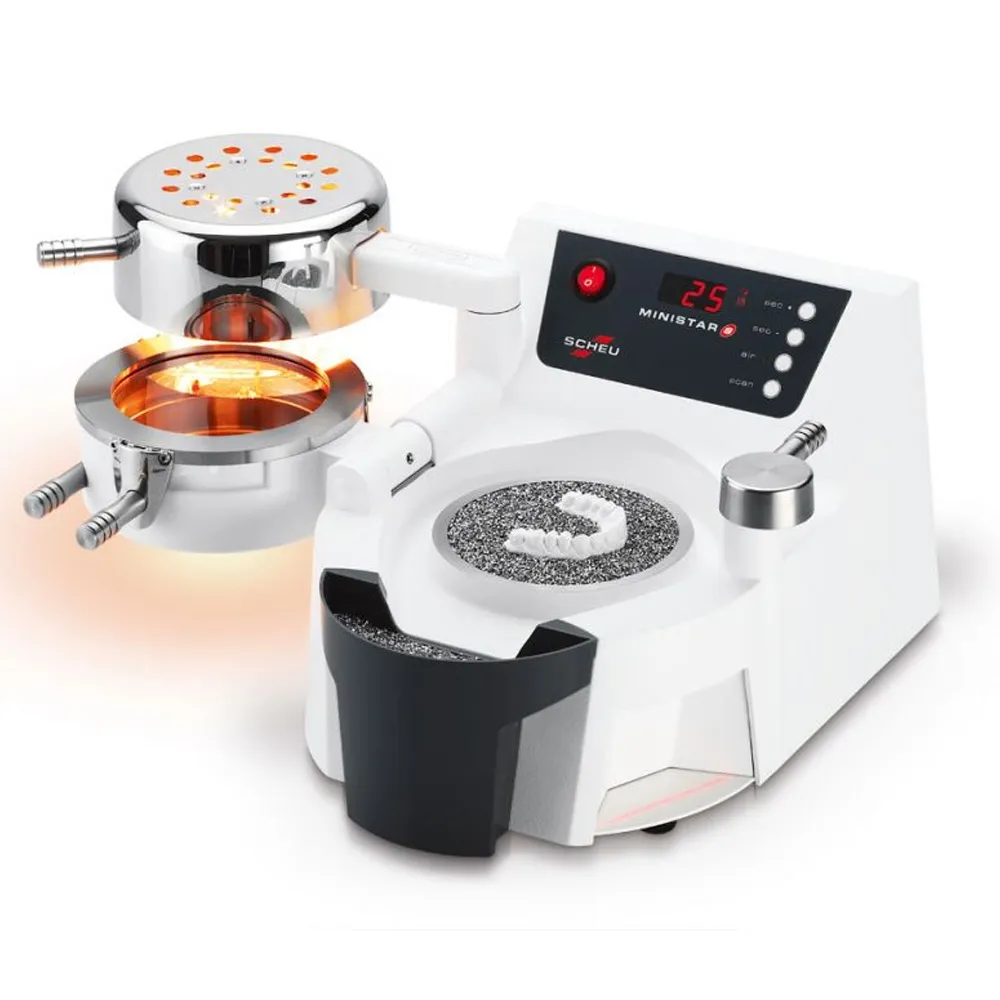

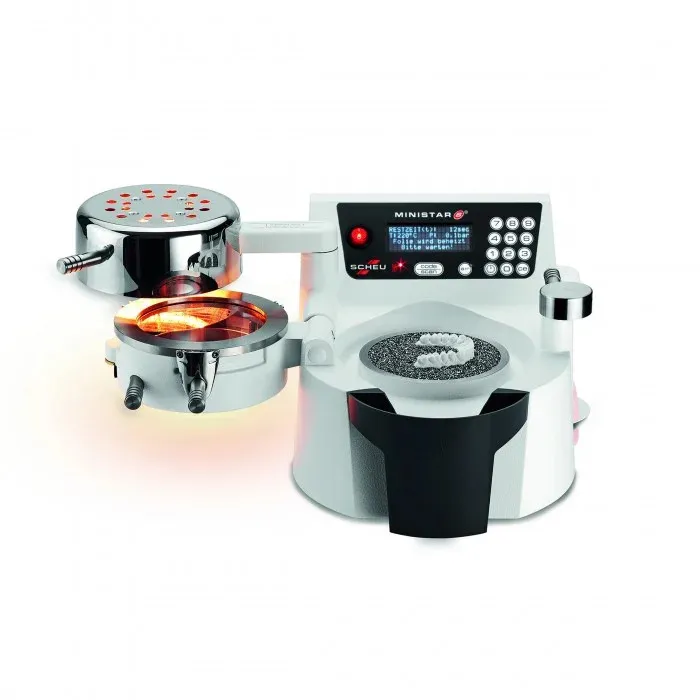

The new generation of the successful handy pressure moulding machine now equipped with Scan technology and 4 bar working pressure. The coded pressure moulding plate is read by the scanner, allowing programming of all important data such as heating time, temperature and cooling time.The working temperature is reached immediately by swiveling the patented heater over the material after scanning or entering the heating time – and the material is thermoformed.
The unique thermostatic control of the heater ensures constant heating temperatures, regardless of external influences, such as room temperature and line voltage. Perfectly heated material and
reproducible moulds are the result.
Key Specifications
- Voltage 115V (AC) – 50/60 Hz
- Power – 750 W
- Pressure – 60 psi / 4 bar
- W x D x H – 17.25” x 14.25” x 8.25”
- Weight – 31lbs / 9.07kg
Packaging
- 1 x Scheu Ministar S with Barcode Scanner – 3501
Direction to Use
- Plug the electrical cord in the back of the MiniSTAR S into a three-prong 110v outlet. The fuses are located in the back of the machine above the electrical connection
- Connect the MiniSTAR S to the air source using the highpressure hose. Slip one end of the hose onto the air valve of the MiniSTAR S, and slip the other end over the air pressure line. Secure each end in place with a hose clamp.
- Note: Route the electrical cord and pressure hose away from the heating element.
- Secure the clamping frame to the pressure chamber by referencing the clamp handle at a 4-5 o’clock position over the chamber. Slip the clips of the clamping frame into the grooves on the outside of the chamber and slide the clamping handle to the left
- With pellets provided, fill cup half full with pellets
- Pour remaining pellets in the pellet drawer and clip it onto the front of the MiniSTAR S table
- Place platform on inner lip of the pellet cup, with the pellet level half full. Make sure the inner lip of the cup is clear of pellets
- Working pressure of 4 bar (60 psi) is pre-set in the machine. Confirm or adjust MiniSTAR S air pressure by first turning on the main air source .Release the locking cap on the regulator by pulling it outward . Set the pressure by turning the regulator dial on the back of the machine clockwise to increase the pressure, counterclockwise to decrease .
- Identify the proper pressure by the gauge. Once pressure is set, lock regulator by pushing the cap in towards the machine. Maximum pressure is approximately 4 bar, or only what the main line is capable of supplying.
