W& H Lina Autoclave 22 Lts. – B Class – Inbuilt USB System – WH106
Original price was: $ 6093.75.$ 5281.25Current price is: $ 5281.25.
W&H Lina Autoclave 22L Class B, USB, ergonomic, efficient dental sterilization
| Quantity | Price |
|---|---|
| 2 - 5 | $ 5228.44 |
| 6 - 10 | $ 5175.63 |
| 11 - 20 | $ 5070.00 |
| 21 - 50 | $ 5017.19 |
| 51 + | $ 4911.56 |
Features
Description

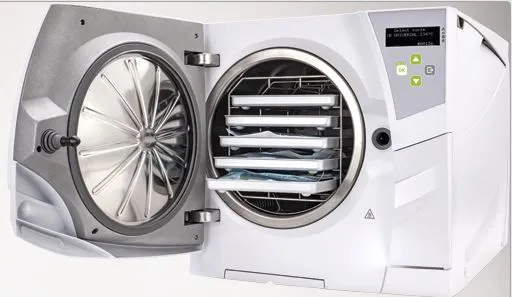

W&H Lina Autoclave, with a 22-liter chamber capacity and classified as a Class B autoclave, stands out with its advanced features. Specifically, the inbuilt USB system, denoted by the model WH106, allows for seamless digital cycle recording and comprehensive traceability. Tailored for dental applications, the autoclave employs exclusive type B cycles, ensuring the effective sterilization of diverse dental instruments, including bagged hollow items. The unit’s ergonomic design is characterized by automatic water tank filling and draining functions, coupled with an automatic door lock, enhancing user convenience. With dimensions of 465 × 452 × 646 mm (w x h x d) and a weight of 42 kg when empty, the Lina autoclave combines a compact form with powerful performance. Its user-friendly keypad facilitates easy navigation through sterilization options, and the USB system enables efficient cycle documentation. This W&H autoclave represents a comprehensive solution for dental sterilization needs, delivering reliability and advanced functionality.
Key Specifications
- Chamber size: 22 l
- Power supply: 200–240 V AC; 50 Hz or 60 Hz; 10 A single phase
- Power consumption: 2.0–2.4 kW
- Overall dimension (w x h x d): 465 × 452 × 646 mm
- Weight (empty): 42 kg
- Main/Used water tanks: 4.8/4.8 l
- Working range: 7 to 10 cycles
- Usable space in chamber (w x h x d): 195 × 195 × 400 mm
- Connection types: 1 USB port in the front (additional 1 in the rear as option), automatic water filling kit (optional)
Packaging
- Supplied with reversible rack
- 3 aluminium trays
- Funnel
- Drain tube and tray holder
Direction to Use
Preparation:
- Ensure the autoclave is placed on a stable surface with adequate ventilation.
- Check that the water tanks are filled appropriately.
- Ensure that the items to be sterilized are properly prepared and loaded into the chamber according to the autoclave’s instructions.
Power On:
- Connect the autoclave to a power source following the specified electrical requirements.
- Power on the autoclave using the control panel or keypad.
Select Sterilization Cycle:
- Use the user-friendly keypad to select the appropriate sterilization cycle. For the W&H Lina, you may choose a type B cycle suitable for your specific load.
Load the Chamber:
- Load the items to be sterilized into the autoclave chamber. Ensure proper spacing and avoid overloading to allow for effective sterilization.
Close the Door:
- Close the autoclave door securely. Some autoclaves may have an automatic door-locking mechanism.
Start the Cycle:
- Initiate the sterilization cycle as per the selected settings. This may involve pressing a start button or following prompts on the control panel.
Wait for Completion:
- Allow the autoclave to complete the sterilization cycle. The time required may vary based on the selected cycle and load.
Cooling and Drying:
- Some autoclaves, like the W&H Lina, may include a drying phase. Allow the autoclave to complete this phase before opening the door.
Open the Door:
- Once the sterilization cycle is complete, and the drying phase if applicable, open the autoclave door carefully.
Unload Sterilized Items:
- Carefully remove the sterilized items from the autoclave chamber, taking necessary precautions.
Power Off:
- Power off the autoclave and disconnect it from the power source.
