Features
Description

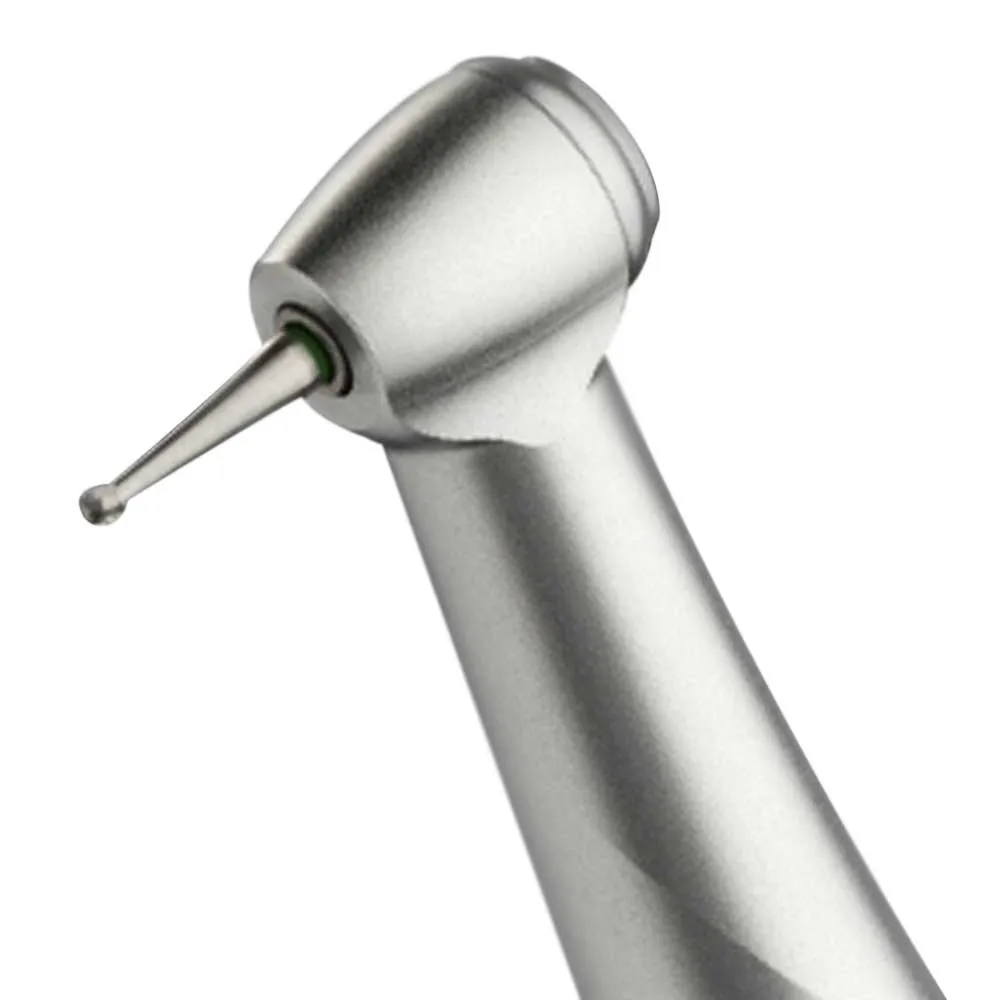

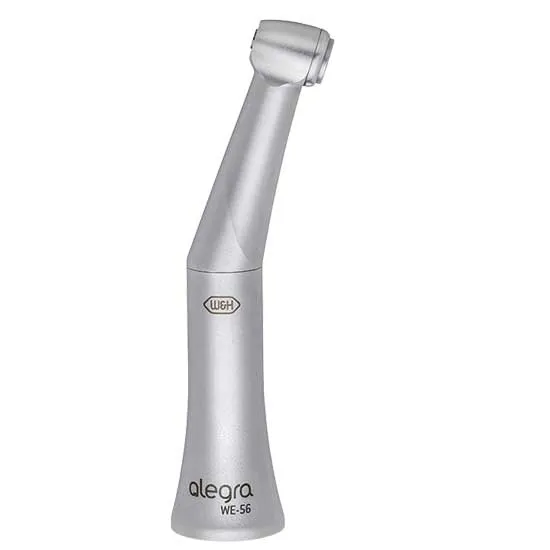

W&H WE-56 Contra Angle Handpiece (HP333) is a precision dental instrument designed for optimal performance and user comfort. With a contra-angle design, the shaft of the cutting tool is angled to facilitate enhanced visibility and accessibility in dental procedures. The handpiece features a push-button chucking system for convenient and swift bur changes, accommodating burs with a standard diameter of Ø 2.35 mm (ISO 1797-1). Operating at a speed of 40,000 min-1, the WE-56 ensures efficient and precise dental work. Its robust and durable construction, coupled with an ergonomic design, minimizes hand fatigue during extended use. Additionally, the handpiece is thermo washer disinfectable and sterilizable, meeting stringent hygiene standards. The WE-56 Contra Angle Handpiece exemplifies W&H’s commitment to quality, offering dental professionals a reliable and versatile tool for a range of dental applications.
Key Specifications
- Drive speed: 40,000 min-1
- Motor connection according to standard: ISO 3964
- Outer diameter of the sheath: 20 mm
- Contra-angle handpiece 1:1
- Head size: Ø 10.1 mm
- Head height (with 19 mm bur): 20.8 mm
- Maximum permitted bur length: 34 mm
Packaging
- 1 x Contra Angle Handpiece – HP333
Direction to Use
Preparation:
- Ensure that the handpiece is clean and sterilized before use. Follow manufacturer guidelines for sterilization methods.
- Check that the bur (cutting tool) to be used is compatible with the handpiece and has the correct diameter (Ø 2.35 mm).
Inserting the Bur:
- Press the release button on the handpiece to open the chuck.
- Insert the bur into the chuck until it clicks into place.
- Release the button to secure the bur in the chuck.
Connecting to the Motor:
- Connect the contra-angle handpiece to the dental motor, ensuring a secure and proper fit.
Adjusting Speed:
- Set the desired speed on the dental motor according to the procedure requirements. The typical operating speed for these handpieces is around 40,000 min-1.
Procedure:
- Begin the dental procedure, using the contra-angle handpiece as needed for tooth preparation, polishing, or other tasks.
Changing Bur:
- If a different bur is needed during the procedure, press the release button to open the chuck, replace the bur, and secure it in place.
Post-Procedure:
- After completing the procedure, detach the contra-angle handpiece from the motor.
Cleaning and Sterilization:
- Thoroughly clean the handpiece according to the manufacturer’s instructions.
- Sterilize the handpiece using an appropriate method, such as autoclaving.
