W&H Ws-75lg Surgical Contra Angle Handpiece 20:1 (Fiber Optic) – WH113
Original price was: $ 1153.12.$ 999.38Current price is: $ 999.38. $ 989.39
Surgical contra-angle handpiece with mini LED
| Quantity | Price |
|---|---|
| 2 - 5 | $ 989.39 |
| 6 - 10 | $ 979.39 |
| 11 - 20 | $ 959.40 |
| 21 - 50 | $ 949.41 |
| 51 + | $ 929.42 |
Features
Description

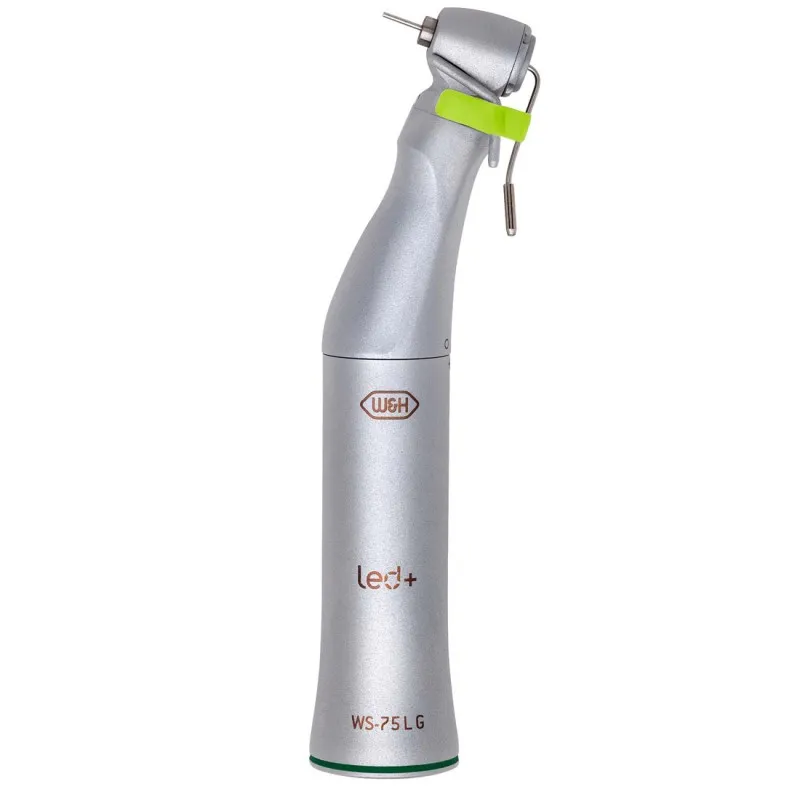

W&H contra-angle handpiece(WS-75 LG)
Work with daylight quality
As the undisputed leader in LED technology, W&H has developed surgical contra-angle handpieces with mini LED+, which offers outstanding illumination with high-contrast, natural light.
WS-75 L G
Surgical contra-angle handpiece
with push-button, mini LED+ and generator
Coupling system: ISO 3964 (DIN 13940)
20:1, can be dismantled, single spray,
with hexagon chucking system,
for surgical burs and cutters with
contra-angled shank Ø 2.35 mm,
(shank hardness >50 HRC, >520 HV),
Kirschner/Meyer internal bur cooling system,
maximum drive speed 40,000 min-1
Indications
- Implantation
- osteotomy
Key Specifications
- Transmission ratio: 20:1
- Coupling system: ISO 3964 (DIN 13940)
- Lighting system: mini LED+
- Power supply: via independent generator
- Light quality: daylight
- External spray: single
- Chucking system: push-button chuck
- Rotary instruments: for surgical burs and cutters with contra-angled shank Ø 2.35 mm
- Maximum drive speed: 40,000 min -1
- Can be dismantled: yes
Packaging
- 1 x Surgical Contra Angle Handpiece 20:1
Direction to Use
Setup:
- Ensure that the handpiece is clean and sterilized according
- Connect the handpiece to the dental unit or surgical device using the specified ISO 3964 (DIN 13940) coupling system.
Inserting Instruments:
- Use rotary instruments such as surgical burs and cutters with a contra-angled shank diameter of Ø 2.35 mm.
- Insert the instrument into the chuck of the handpiece.
Power Supply:
- Connect the handpiece to the power supply. In the case of the W&H WS-75LG, it uses an independent generator for power.
Illumination:
- Ensure that the LED light source is functioning properly. The mini LED+ in this model provides high-quality, daylight-like illumination. If there are adjustable settings for the light, adjust them as needed.
Operation:
- Operate the handpiece at the recommended speed, not exceeding the maximum drive speed of 40,000 min-1.
- Use the handpiece for the intended indications, such as implantation and osteotomy. Follow standard dental and surgical procedures for these applications.
Cleaning and Maintenance:
- Thoroughly clean and sterilize the handpiece according to the recommended procedures.
Storage:
- Store the handpiece in a designated, clean, and dry area.
