Features
Description
Introducing the Woodpecker Inbuilt Scaler V2, the cutting-edge dental tool designed to elevate your dental practice to new heights. With its advanced features and exceptional performance, this scaler is a must-have for any modern dental professional. The Woodpecker Inbuilt Scaler V2 operates in three different modes: scaling, period, and endo, providing versatility for a wide range of dental procedures. Whether you need to perform routine cleanings, periodontal treatments, or intricate endodontic procedures, this scaler has got you covered.
One of the standout features of this scaler is its detachable handpiece, which can be easily sterilized at 135°C, ensuring strict infection control protocols. Additionally, the handpiece comes with five different tips, allowing you to customize your treatment approach based on individual patient needs. The scaler boasts technical parameters that are tailored to meet the demands of a busy dental practice. With an input of 24V~ 50Hz and an output power ranging from 3W to 20W, you can precisely control the scaler’s performance. Its frequency of 28kHz ± 3kHz ensures effective and efficient scaling, promoting excellent oral health for your patients.
Key Specifications
- Main unit input: 24V~ 50Hz
- Output power: 3W ~ 20W
- Frequency: 28kHz ± 3kHz
- Water pressure: 0.1bar ~ 5bar (0.01MPa ~ 0.5MPa)
- Main unit weight: 0.2kg
- Dimensions: 74mm × 56mm × 38mm

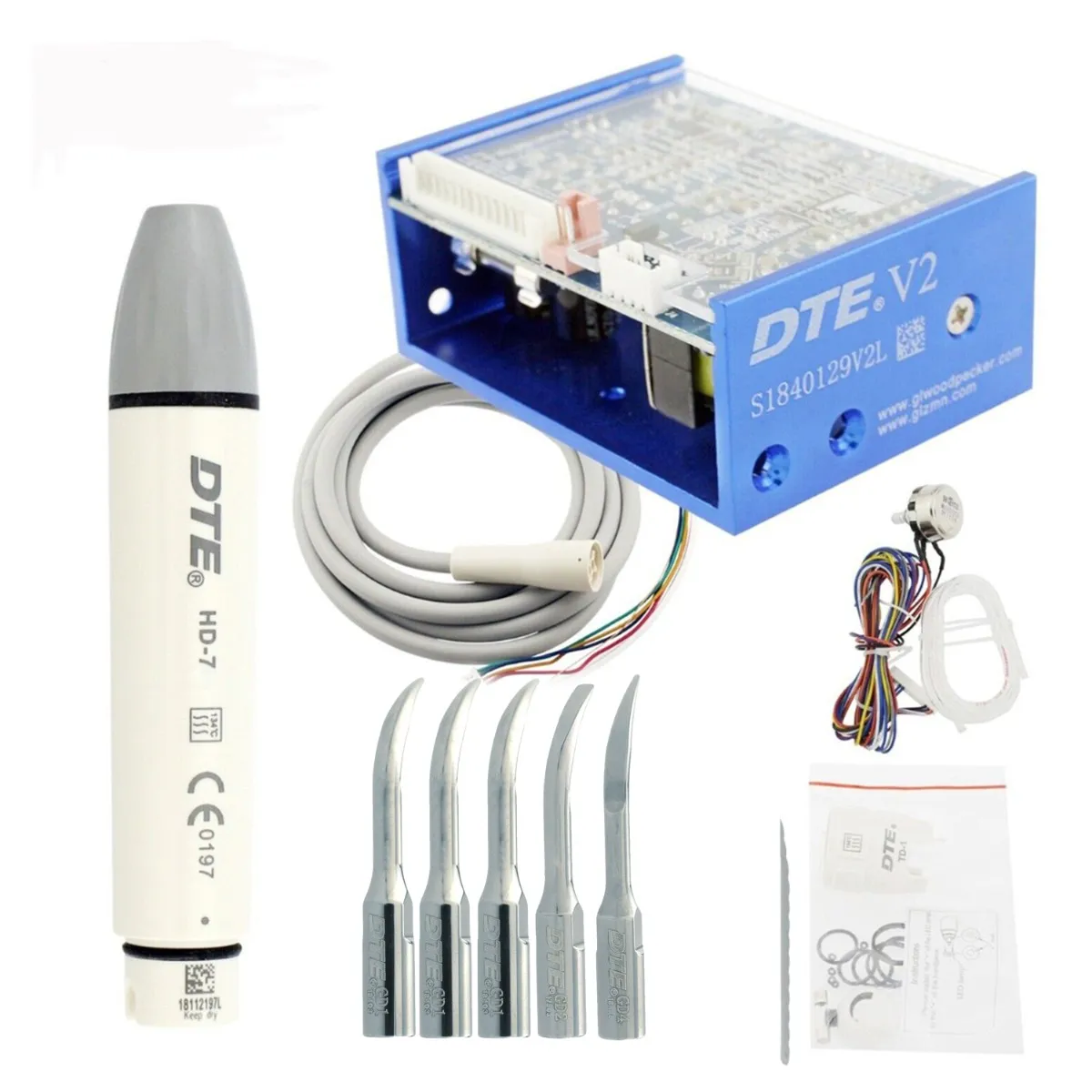

Packaging
- 1 x Main Unit
- 1 x Detachable Handpiece
- 1 x Cable
- 2 x Scaling Tip GD1
- 1 x Scaling Tip GD2
- 1 x Scaling Tip GD4
- 1 x Scaling Tip PD1
- 1 x Torque Wrench
- 1 x Water Pipe
- 1 x Potentiometer and Electronic Pipe
- 1 x Potentiometer Knob
- 1 x Cutting Sleeve (For Handpiece)
- 6 x Waterproof “o” Ring
- 3 x Handpiece Decorative Ring
- 1 x Two Sided Adhesive Foam
- 3 x Nylon Cable Tie
- 1 x Instruction Manual
- 1 x Qualified Certification
- 1 x Packaging List
- 1 x Transformer (Optional)
Direction to Use
Preparing the Scaler:
- Ensure that the main unit is connected to a power source with the input voltage ranging from 100V to 240V~ 50Hz/60Hz.
- Make sure the water supply is connected to the scaler and the water pressure is within the range of 0.1bar to 5bar (0.01MPa to 0.5MPa).
Attaching the Handpiece:
- Take the detachable handpiece and insert it into the main unit until it clicks securely in place.
- Ensure that the handpiece is properly aligned and fully inserted.
Selecting the Operating Mode:
- The Woodpecker Inbuilt Scaler V2 offers three different operating modes: scaling, perio, and endo.
- Use the mode selector switch on the main unit to choose the desired mode for your specific procedure.
Adjusting the Power Output:
- The scaler allows you to adjust the power output according to your requirements.
- Use the power control knob on the main unit to increase or decrease the power level within the range of 3W to 20W.
Selecting the Tip:
- The handpiece is equipped with five different tips (3 S, 2 P) for various dental treatments.
- Choose the appropriate tip based on the procedure and gently insert it into the handpiece until it is securely in place.
Initiating the Procedure:
- Once all the preparations are complete, press the foot pedal to activate the scaler.
- Gradually bring the tip in contact with the tooth surface, applying the scaler’s vibrations to perform the desired treatment.
Monitoring and Adjusting:
- While using the scaler, monitor the patient’s comfort and adjust the power level and tip movement accordingly to ensure optimal results.
Sterilization:
- After each use, detach the handpiece from the main unit and sterilize it at a temperature of 135°C to maintain strict infection control measures.
